CROSS TRAILER VEHICLE.

Make your own path.

High-efficiency Planetary Gearbox
The Reverse Rotation Transfer Case
Aluminum Suspension System

BUY NOW CHECK KIT VERSION
BUY NOW CHECK KIT VERSION
Pre-order RTR now

#60300101 ADD-ON version

Factory painted and attached
F & R Lamp set
Front side light
Rear door handle

CTS CHASSIS

Born from the vision of a pure driving experience, the vehicle was designed
to be the most capable vehicle on and off the road.

The all-new tws CTS chassis was designed for off-road terrains. The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give the promising durability and instant power output. Adjustable battery box can be adjusted according to battery dimensions. The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves an excellent throttle controllability.

All new A162 front and rear axle sets

According to the needs of players, the transmission direction can be
changed to increase the variability and flexibility of self-modification.

Steel shaft coupler

The steel shaft coupler can withstand a relatively strong torque, and its durability is greatly increased. The long and short axle bodies can be adjusted and matched according to the future wheelbase without the need to purchase additional accessories.

High precision powder metallurgy bevel gear

Surface hardening heat treatment strengthens the durability and fatigue life.

The reverse rotation transfer case

It can improve the body tilt generated when the vehicle is traveling.

High-efficiency planetary gearbox

A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.

Realistic tire tread

The tread pattern has many real details, and the soft material is matched with a moderately supporting foam Inserts, which has both performance and realism.

Aluminum alloy shock absorber and piston rod with low friction coating

The high thermal conduction and stress/density ratio of Aluminum result in high cooling efficiency for nominal operation. The low friction coating of the piston rod makes a smooth and seamless response of the absorber.

The caster angle of the steering system

Positive caster angle aims to keep a straight motion of the vehicle.

Steering large kingpin inclination

It can reduce the load of the steering gear and reduce the abnormal movements of the body caused by the steering and maintain the body posture.

5 Slot Brushed Motor

5-Slot brushed motor give you ultra-smooth throttle response to tackle the most technical terrain.

R/C system

TX3S 2.4G is a reliable R/C system with stable transmission and adjustability.

Electronic speed control

WP-1060 RTR 60A is manufacture by Hobbywings and recognized as easy to use.

Steering servo

Steering servo is manufacture by SAVOX.

It have 12kg torque with metal gears.

CTS CHASSIS

Born from the vision of a pure driving experience, the vehicle was designed
to be the most capable vehicle on and off the road.

The all-new tws CTS chassis was designed for off-road terrains. The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give the promising durability and instant power output. Adjustable battery box can be adjusted according to battery dimensions. The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves an excellent throttle controllability.

All new A162 front and rear axle sets

According to the needs of players, the transmission direction can be
changed to increase the variability and flexibility of self-modification.

Steel shaft coupler

The steel shaft coupler can withstand a relatively strong torque, and its durability is greatly increased. The long and short axle bodies can be adjusted and matched according to the future wheelbase without the need to purchase additional accessories.

High precision powder metallurgy bevel gear

Surface hardening heat treatment strengthens the durability and fatigue life.

The reverse rotation transfer case

It can improve the body tilt generated when the vehicle is traveling.

High-efficiency planetary gearbox

A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.

Realistic tire tread

The tread pattern has many real details, and the soft material is matched with a moderately supporting foam Inserts, which has both performance and realism.

Aluminum alloy shock absorber and piston rod with low friction coating

The high thermal conduction and stress/density ratio of Aluminum result in high cooling efficiency for nominal operation. The low friction coating of the piston rod makes a smooth and seamless response of the absorber.

The caster angle of the steering system

Positive caster angle aims to keep a straight motion of the vehicle.

Steering large kingpin inclination

It can reduce the load of the steering gear and reduce the abnormal movements of the body caused by the steering and maintain the body posture.

5 Slot Brushed Motor

5-Slot brushed motor give you ultra-smooth throttle response to tackle the most technical terrain.

R/C system

TX3S 2.4G is a reliable R/C system with stable transmission and adjustability.

Electronic speed control

WP-1060 RTR 60A is manufacture by Hobbywings and recognized as easy to use.

Steering servo

Steering servo is manufacture by SAVOX.
It have 12kg torque with metal gears.

DIMENSIONS & TECHNICAL DETAILS

Motor Type :


R/C system :


ESC :


Steering Servo :


Gear ratio :


Pinion gear module :


Ground clearance :


Length :


Width :


Height :


Wheelbase :




540 Size, Brushed 5-Slot 13T


TX3S 2.4G


WP-1060 RTR 60A


SAVOX RTR12 12KG


40~62.5 (default 50)


M0.6


50mm


408mm


200mm


190mm


242mm




DIMENSIONS & TECHNICAL DETAILS

Motor Type :


R/C system :


ESC :


Steering Servo :


Gear ratio :


Pinion gear module :


Ground clearance :


Length :


Width :


Height :


Wheelbase :




540 Size, Brushed 5-Slot 13T


TX3S 2.4G


WP-1060 RTR 60A


SAVOX RTR12 12KG


40~62.5 (default 50)


M0.6


50mm


408mm


200mm


190mm


242mm




COMPARISON CHART

Equipment & Body Details


Radio System


Motor


Electric Speed Control


Steering Servo


Body Shell


Chassis


Lamp case (with lens)


Side mirror & spare tire mount


Snokle


Bumper


Wiper


Roof rack set




VTR RTR


2.4GHz 3CH TX3S


Brushed 540 type 5-Slot 13t


Hobbywing WP-1060 RTR 60A


SAVOX RTR-12 12KG


Factory Finished


Factory Finished


None


Included


Included


Included


None


None




VTR KIT


Not included


Not included


Not included


Not included


Clear


Unassembled


Included


Included


Included


Included


Included


Included




COMPARISON CHART

Equipment & Details


Radio System


Motor


Electric Speed Control


Steering Servo


Body Shell


Chassis


Lamp case (with lens)


Side mirror


Snokle


Bumper


Wiper


Roof rack set


Spare tire mount




VTR RTR


2.4GHz 3CH TX3S


Brushed 540 type 5-Slot 13t


HW WP-1060 RTR 60A


SAVOX RTR-12 12KG


Factory Finished


Factory Finished


None


Included


Included


Included


None


None


Included




Equipment & Details


Radio System


Motor


Electric Speed Control


Steering Servo


Body Shell


Chassis


Lamp case (with lens)


Side mirror


Snokle


Bumper


Wiper


Roof rack set


Spare tire mount




VTR KIT


Not included


Not included


Not included


Not included


Clear


Unassembled


Included


Included


Included


Included


Included


Included


Included

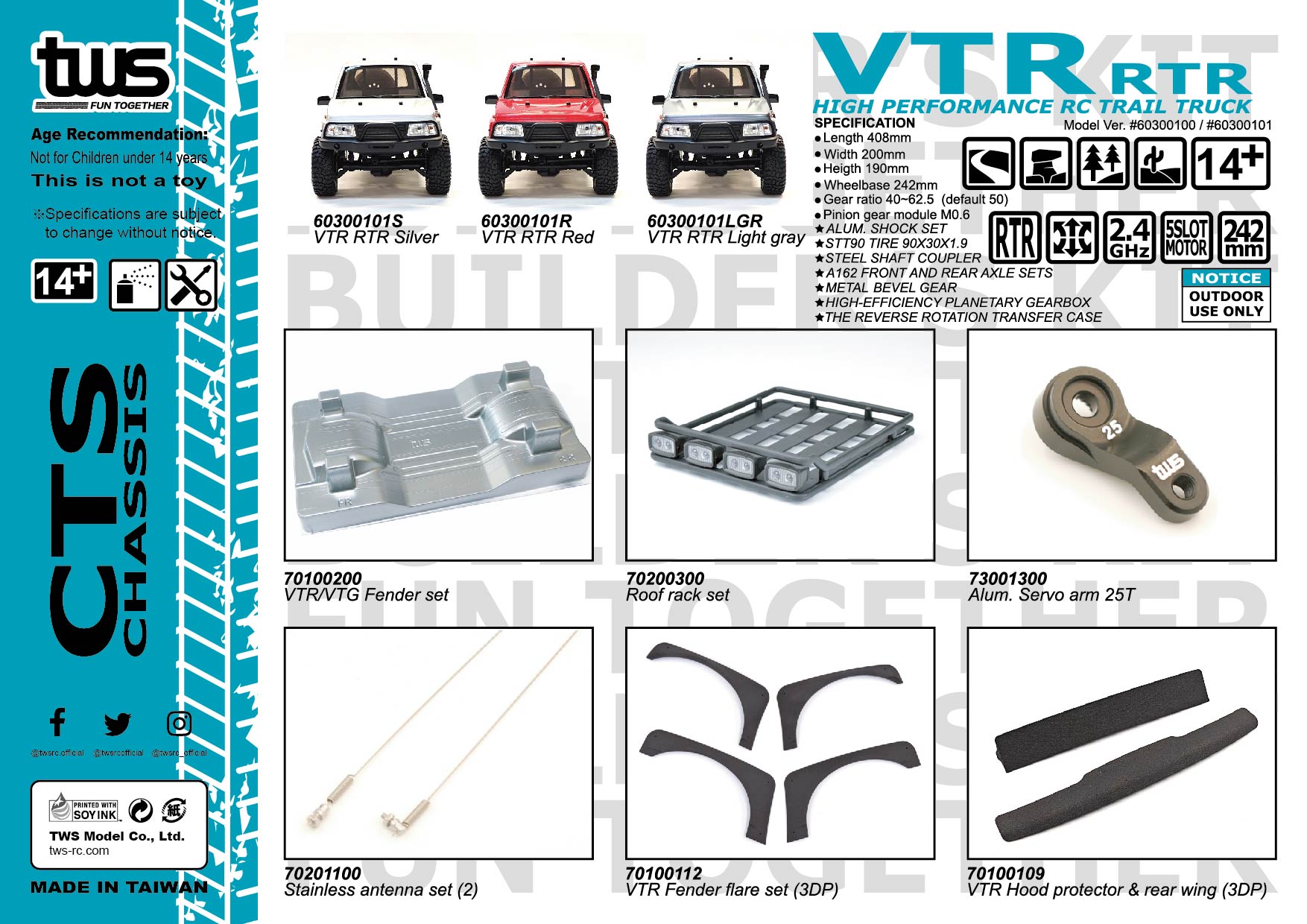

VTR RTR OPTION GUIDE BOOK
