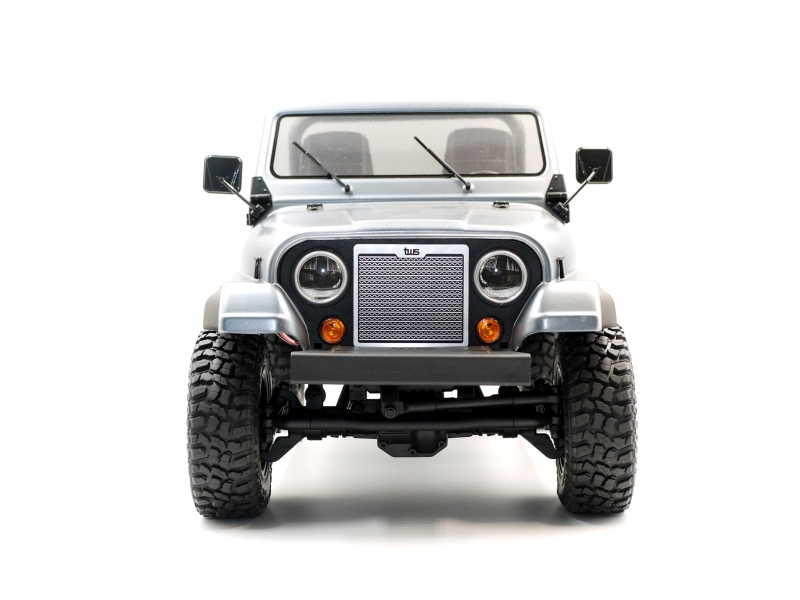

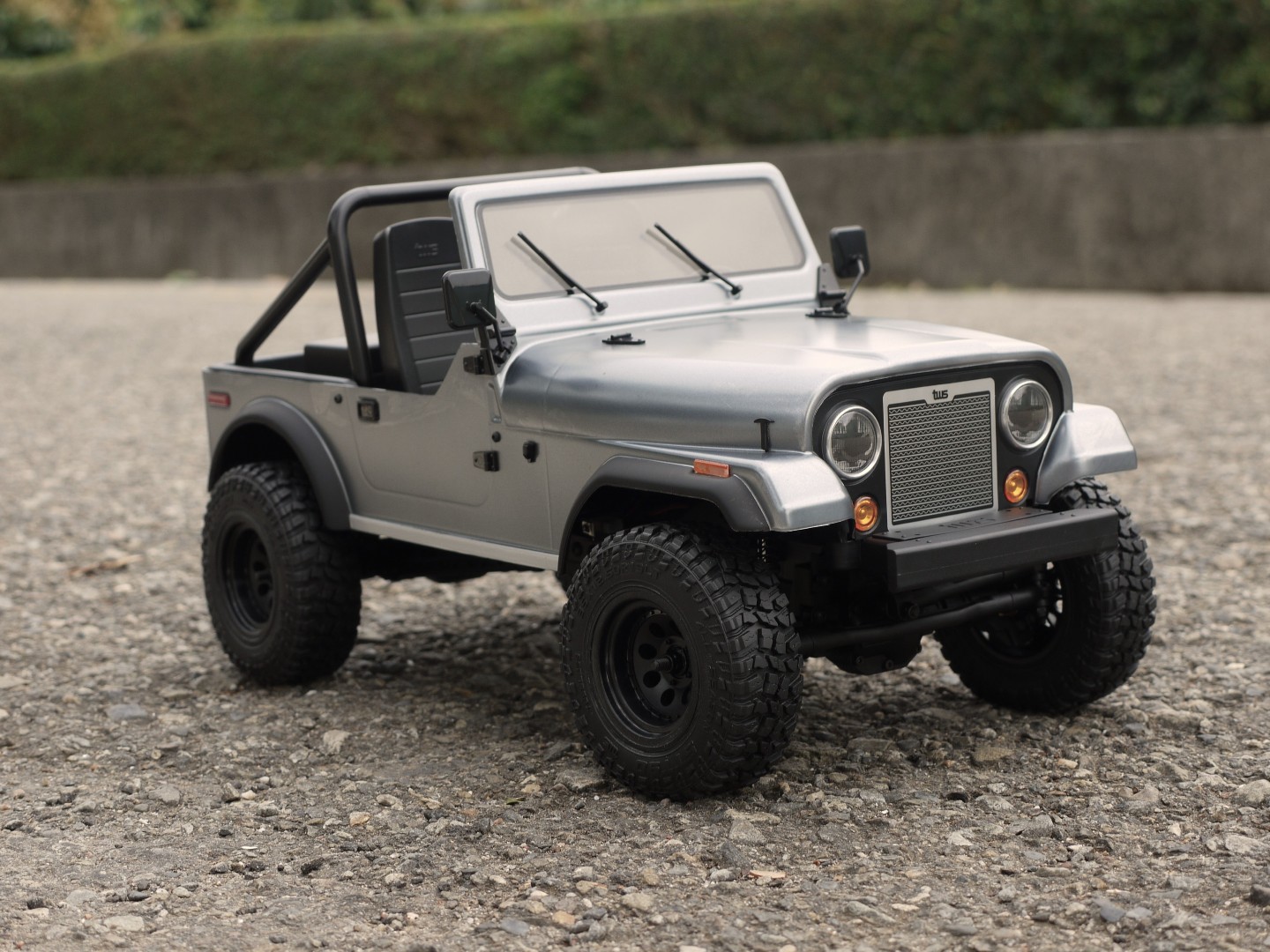

CROSS TRAILER VEHICLE.

Make your own path.

High-efficiency Planetary Gearbox
The Reverse Rotation Transfer Case
Aluminum Suspension System
AMS / CMS Two mode steering system

BUY NOW #60100201 check RTR version

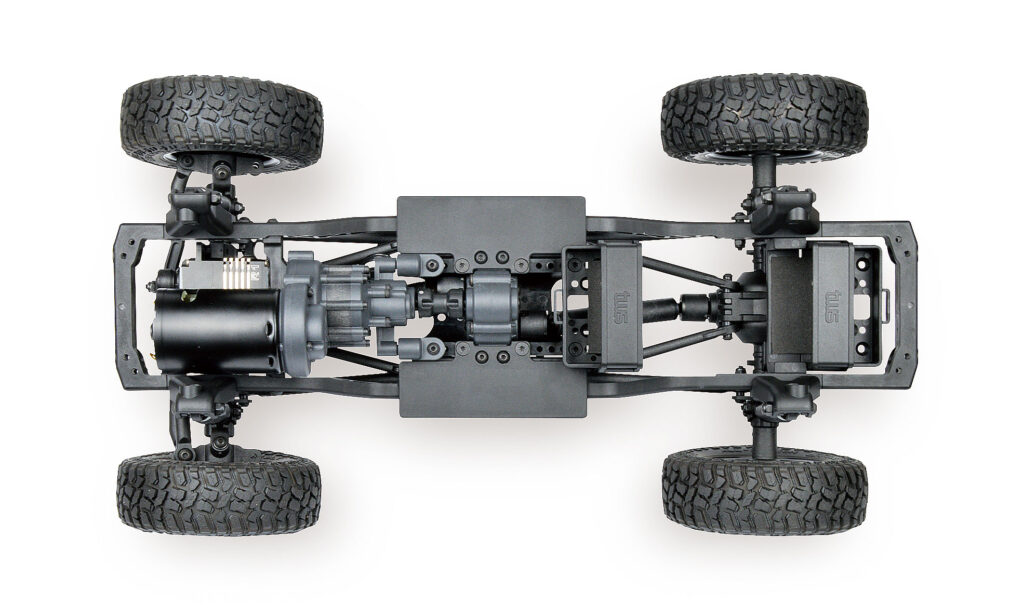

CTS CHASSIS

Born from the vision of a pure driving experience, the vehicle was designed
to be the most capable vehicle on and off the road.

The all-new tws CTS chassis was designed for off-road terrains.  The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give the promising durability and instant power output. Convertible steering system: AMS (default, an advanced configuration for further modification) and CMS (more scale look) Two types of springs are included, which can be matched according to the weight of the car body. Adjustable battery box can be adjusted according to battery dimensions. The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves an excellent throttle controllability.

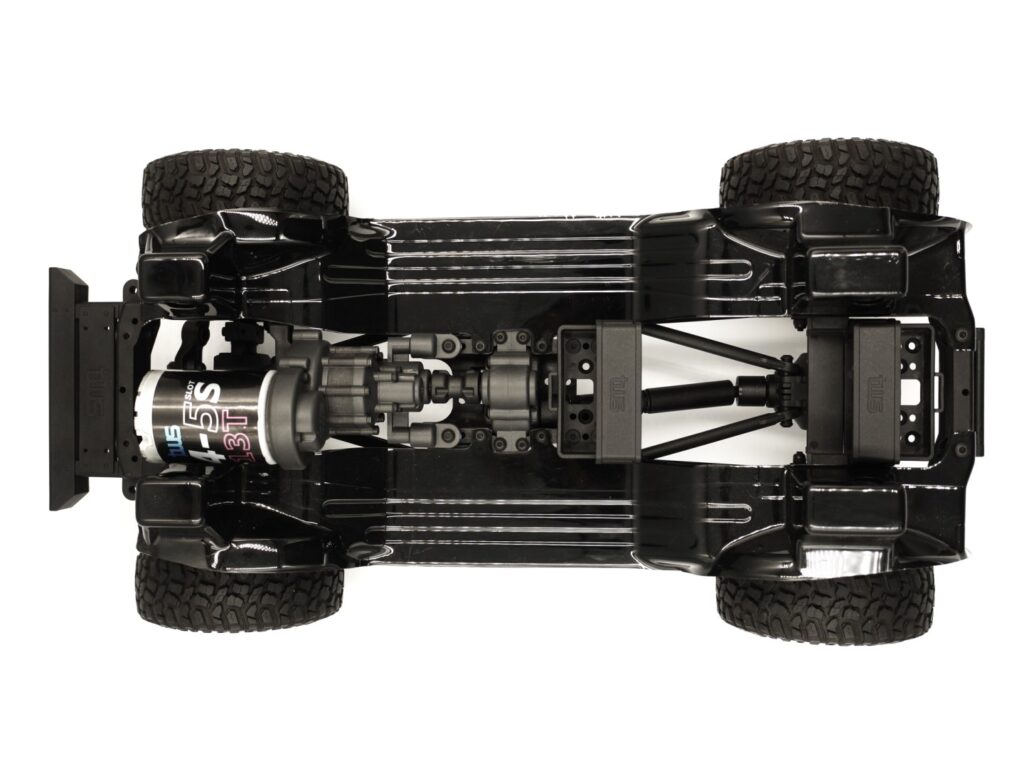

VTG80 Fender set

Perfect fit to CTS Chassis & VTG80 Body shell
Made from LEXAN
Need to paint


CTS Transmission system

Corresponding to higher speed motors achieves an excellent throttle controllability.

Floating motor mount

Obviate the unnecessary vibrations which has potential to disturb the normal function of reducer system.

High-efficiency planetary gearbox

A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.

● Metal planetary gear carrier included

● Pre-built Reduce box set

The reverse rotation transfer case

It can improve the body tilt generated when the vehicle is traveling.

● Pre-built Transfer box set

High precision powder metallurgy bevel gear

Surface hardening heat treatment strengthens the durability and fatigue life.

● Pre-built F&R Axle set

All new A162 front and rear axle sets

According to the needs of players, the transmission direction can be changed to increase the variability and flexibility of self-modification.

Full ball bearing

Results in efficient transmission and smooth operation.

Steel shaft coupler

The steel shaft coupler can withstand a relatively strong torque, and its durability is greatly increased. The long and short axle bodies can be adjusted and matched according to the future wheelbase without the need to purchase additional accessories.

Realistic tire tread STT90

The tread pattern has many real details, and the soft material is matched with a moderately supporting foam Inserts, which has both performance and realism.
Height : 90mm
Width : 30mm
For 1.9″ Rims

Aluminum alloy shock absorber and piston rod with low friction coating

The high thermal conduction and stress/density ratio of Aluminum result in high cooling efficiency for nominal operation. The low friction coating of the piston rod makes a smooth and seamless response of the absorber.

The caster angle of the steering system

Positive caster angle aims to keep a straight motion of the vehicle.

Steering large kingpin inclination

It can reduce the load of the steering gear and reduce the abnormal movements of the body caused by the steering and maintain the body posture.

AMS/CMS OPTIONAL

Designed to be the most capable vehicle on and off the road.

DIMENSIONS & TECHNICAL DETAILS

Length :


Width :


Height :


Wheelbase :


Ground clearance :


Weight :


Gear ratio :


Pinion gear module :

390mm


200mm


190mm


252mm


50mm


1450g (without electronic)


40~62.5 (default 50)


M0.6 (20T included)

V1 / V2 COMPARISON

VTG80 KIT V1 60100200


CNC Bevel gear set


Plastic planetary gear carrier


Unassembled F&R Axle set


Unassembled Reducer box set


Unassembled Transfer box set


Without Fender set

VTG80 KIT V2 60100201


Powder metallurgy bevel gear set


Powder metallurgy planetary gear carrier set


Pre-built F&R Axle set


Pre-built Reducer box set


Pre-built Transfer box set


Fender set included

BODY DETAILS & ACCESSORIES

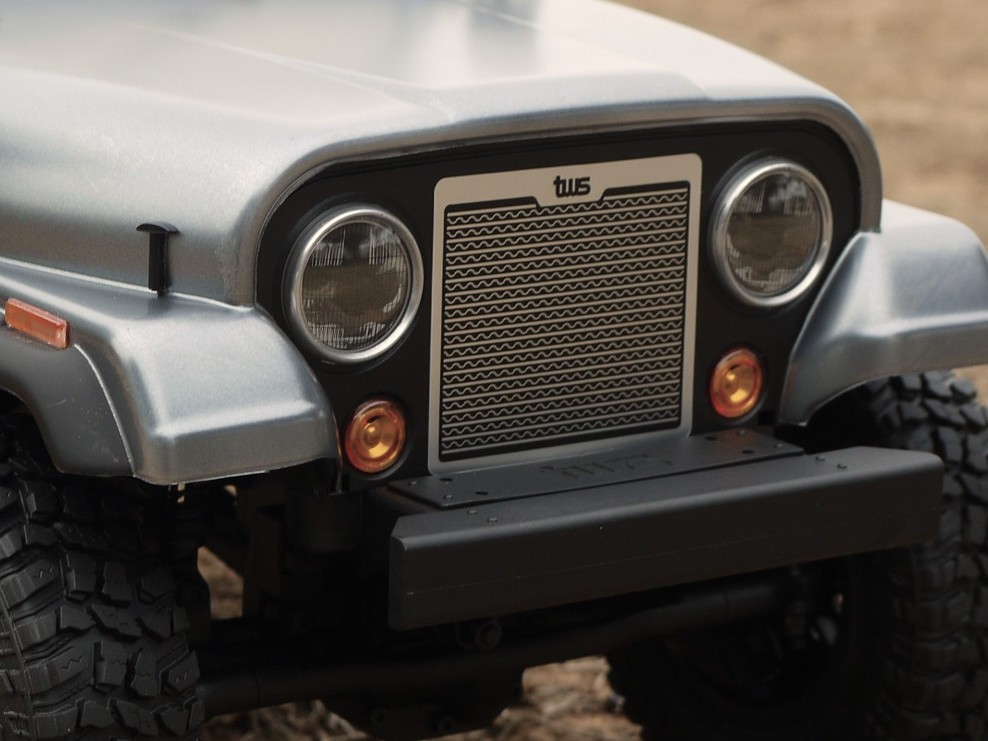

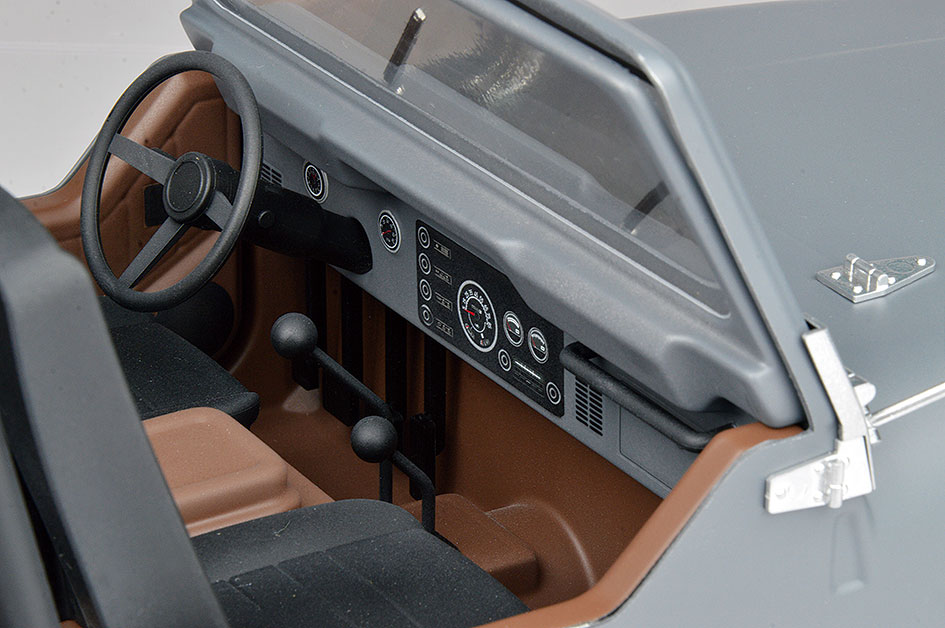

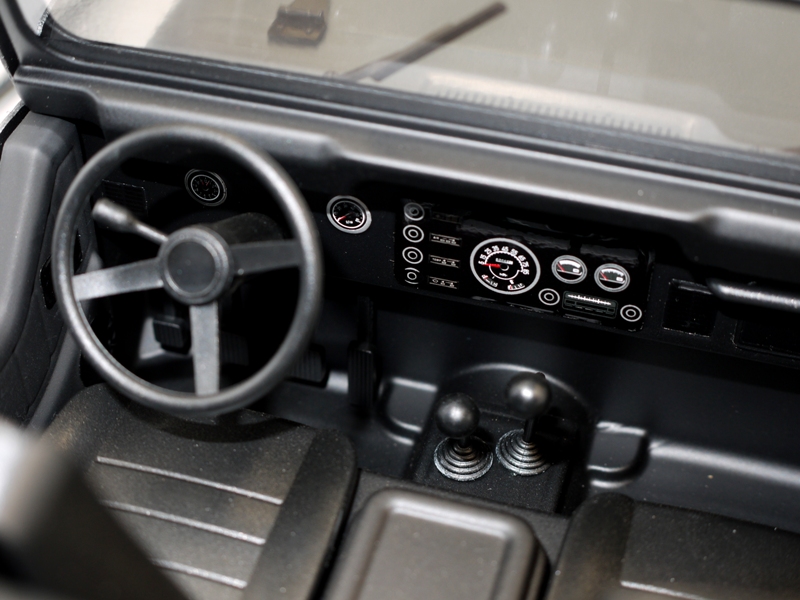

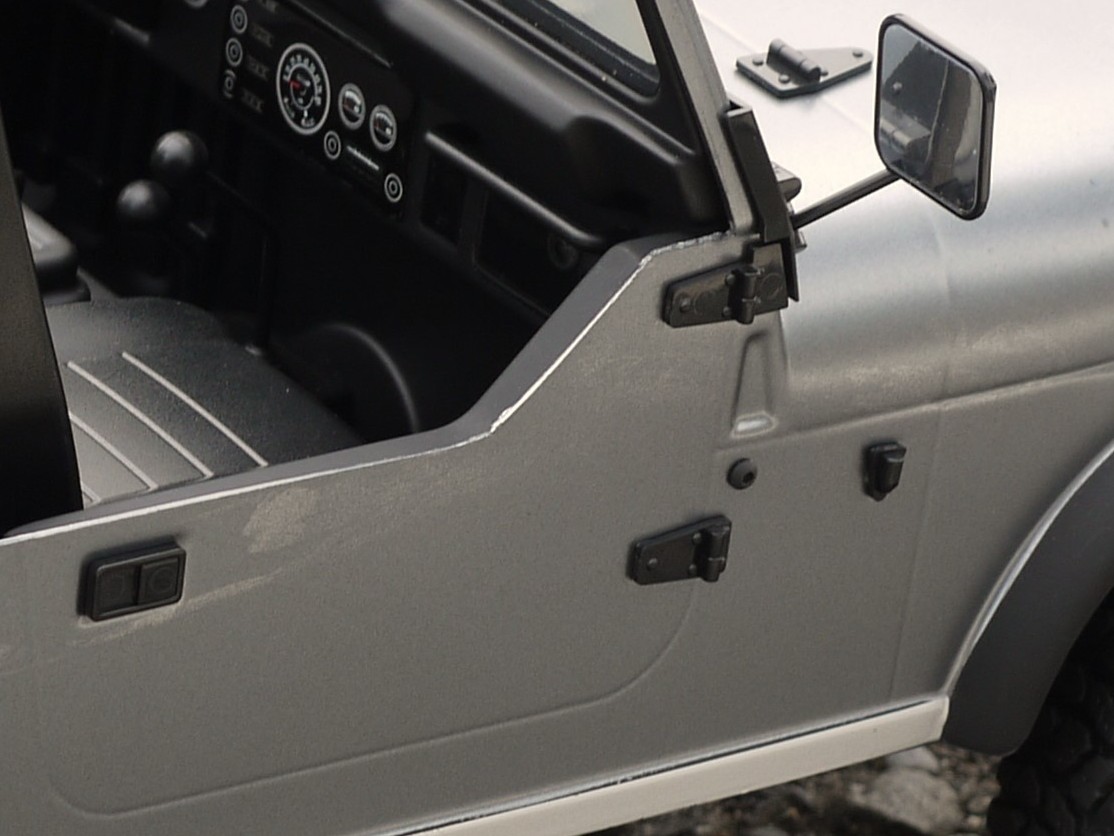

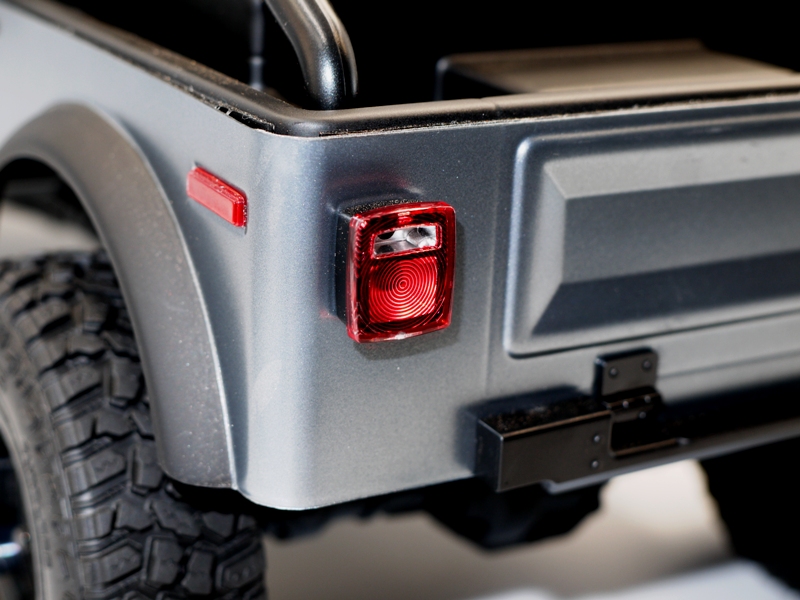

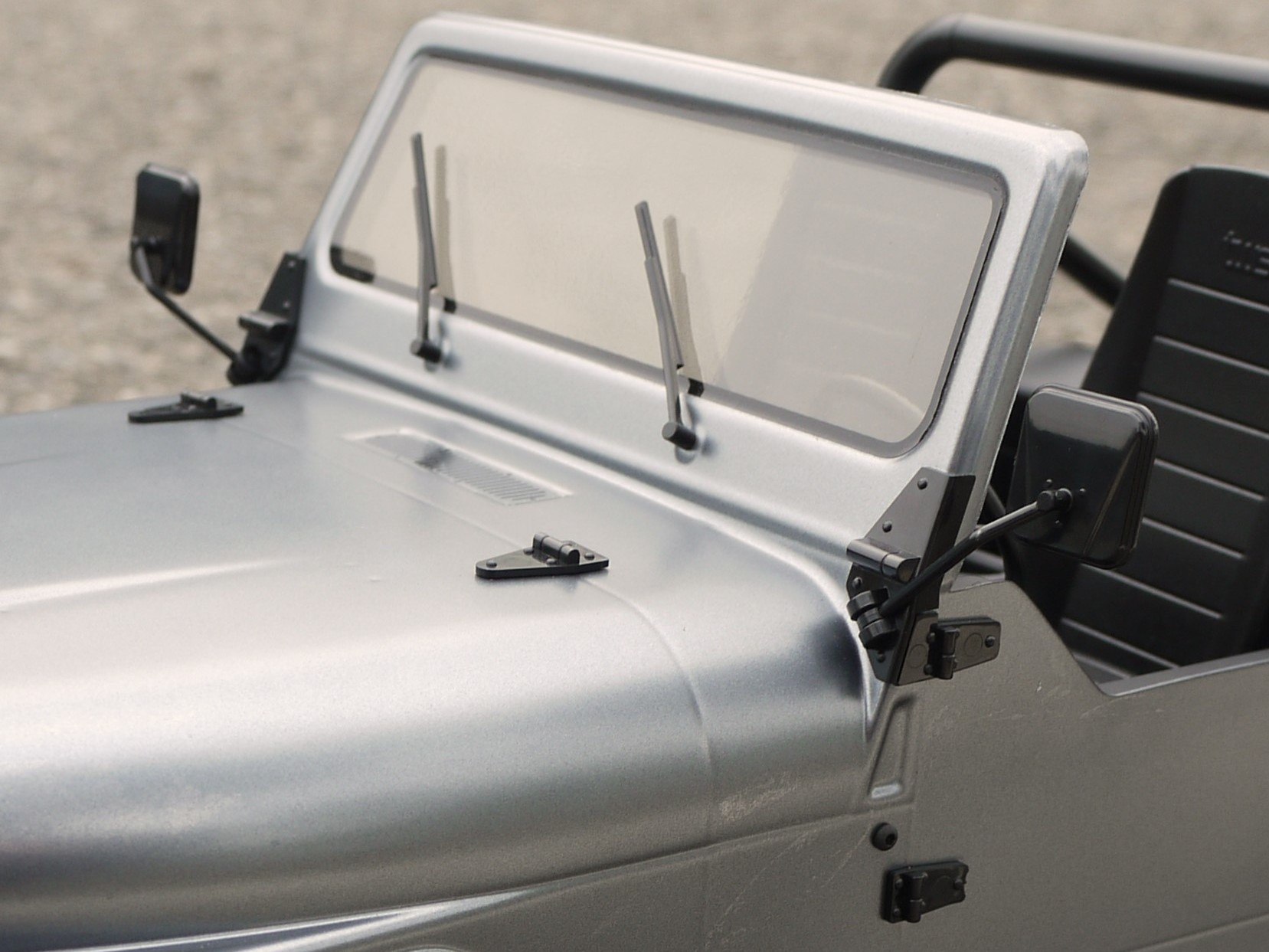

 This well-known classic off-road vehicle has its history and story.  tws makes every effort to present all details and scale.  Exterior wipers, door hinges, fuel tank cap, front grille, rear lights, side mirrors, antenna mounts, door handles.  Dashboard, steering wheel, gear lever, pedals, seats, roll cage.  Rich detail accessories, can make the top opening and closing.

CTS CHASSIS

Born from the vision of a pure driving experience, the vehicle was designed
to be the most capable vehicle on and off the road.

The all-new tws CTS chassis was designed for off-road terrains.  The front motor placement is the same configuration as the full-scale vehicles. The torque is increased through the planetary gear reduction box, and then output to the front and rear axles by the transfer box. The strong bevel gears in the axles give the promising durability and instant power output. Convertible steering system: AMS (default, an advanced configuration for further modification) and CMS (more scale look) Two types of springs are included, which can be matched according to the weight of the car body. Adjustable battery box can be adjusted according to battery dimensions. The final transmission ratio ranging from 40 to 62.5 (default 50) corresponding to higher speed motors achieves an excellent throttle controllability.

VTG80 Fender set

Perfect fit to CTS Chassis & VTG80 Body shell
Made from LEXAN
Need to paint


CTS Transmission system

Corresponding to higher speed motors achieves an excellent throttle controllability.

Floating motor mount

Obviate the unnecessary vibrations which has potential to disturb the normal function of reducer system.

High-efficiency planetary gearbox

A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.

● Metal planetary gear carrier included

● Pre-built Reduce box set

The reverse rotation transfer case

It can improve the body tilt generated when the vehicle is traveling.

● Pre-built Transfer box set

High precision powder metallurgy bevel gear

Surface hardening heat treatment strengthens the durability and fatigue life.

● Pre-built F&R Axle set

All new A162 front and rear axle sets

According to the needs of players, the transmission direction can be changed to increase the variability and flexibility of self-modification.

Full ball bearing

Results in efficient transmission and smooth operation.

Steel shaft coupler

The steel shaft coupler can withstand a relatively strong torque, and its durability is greatly increased. The long and short axle bodies can be adjusted and matched according to the future wheelbase without the need to purchase additional accessories.

Realistic tire tread STT90

The tread pattern has many real details, and the soft material is matched with a moderately supporting foam Inserts, which has both performance and realism.
Height : 90mm
Width : 30mm
For 1.9″ Rims

Aluminum alloy shock absorber and piston rod with low friction coating

The high thermal conduction and stress/density ratio of Aluminum result in high cooling efficiency for nominal operation. The low friction coating of the piston rod makes a smooth and seamless response of the absorber.

The caster angle of the steering system

Positive caster angle aims to keep a straight motion of the vehicle.

Steering large kingpin inclination

It can reduce the load of the steering gear and reduce the abnormal movements of the body caused by the steering and maintain the body posture.

AMS/CMS OPTIONAL

Designed to be the most capable vehicle on and off the road.

DIMENSIONS & TECHNICAL DETAILS

Length :


Width :


Height :


Wheelbase :


Ground clearance :


Weight :


Gear ratio :


Pinion gear module :

390mm


200mm


190mm


252mm


50mm


1450g (without electronic)


40~62.5 (default 50)


M0.6 (20T included)

V1 / V2 COMPARISON

VTG80 V1 60100200


CNC Machined

Bevel gear set


Plastic

Planetary gear carrier


Unassembled

F&R Axle set


Unassembled

Reducer box set


Unassembled

Transfer box set


Without

Fender set

VTG80 V2 60100201


Powder metallurgy

Bevel gear set


Powder metallurgy

Planetary gear carrier set


Pre-built

F&R Axle set


Pre-built

Reducer box set


Pre-built

Transfer box set


Fender set

Included

BODY DETAILS & ACCESSORIES

 This well-known classic off-road vehicle has its history and story.  tws makes every effort to present all details and scale.  Exterior wipers, door hinges, fuel tank cap, front grille, rear lights, side mirrors, antenna mounts, door handles.  Dashboard, steering wheel, gear lever, pedals, seats, roll cage.  Rich detail accessories, can make the top opening and closing.
